Simple Precision-Screwdriver Holder

Workshop wall
Workshop wall

This is a very simple and quick hack that anybody can do. The objective is to build a holder that will keep all the precision screwdrivers in one place and facilitate the access to them (i.e. it should be easy to see which one is which and they should be easy to take).


  • A plastic container cap (I love caps)
  • That’s it, condom you do not need anything else


  • Drill or strong scissors
  • Precision screwdrivers
  • A nail (maybe)

Doing it

Screwdriver Holder
Screwdriver Holder
  1. Drill or cut a big hole on the top of the cap. This hole will be used to suspend the screwdriver holder.
  2. Punch in the Screwdrivers in  the rim of the cap. If you do not trust your screwdrivers to pierce your cap, doctor you may use a nail. Keep in mind that the screwdrivers have to be very snug in the holes since they are only being held-in by friction.
  3. Celebrate! you are done.

Enough with the guesswork, I got Logic

I just got a shiny new Logic, implant a tiny 8-channel, 24 MHz logic analyzer from Saleae LLC, and it is beautiful. I’ve been wanting to get a logic analyzer for quite some time and this little guy is definitely worth the 150 bucks it costs.

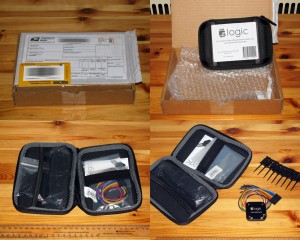

Logic Unboxing
Logic Unboxing

Logic Analyzer?

(skip this if you already know what a logic analyzer is and do not want to be bored to death)

A logic analyzer is a measurement instrument that allows you to record the logic level (e.g. high or low) of a digital signal throughout time. This means that if you are working with a micro-controller and want to know what is actually happening at the pins, you can use a logic analyzer to record the signals of interest and display them on a time-line on a computer screen. This is very convenient considering that debugging microcontrollers often implies guessing or using lame techniques such as slowing down the execution time and lighting up LEDs in order to see what the program is doing.

In short, a logic analyzer allows you to view digital signals and plot them with respect to time.

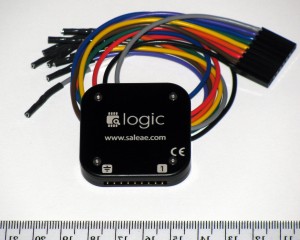

The Logic, by Saleae
The Logic, by Saleae

The Logic has a nice square anodized aluminum body which makes it very sturdy and looks awesome. It is very small (~ 4.5 cm on the side and ~ 0.7 cm high) and features some male headers on the front side and a mini USB port type B on the back. For some reason, I really like the four tiny hex screws that hold together the two aluminum plates that make the body.

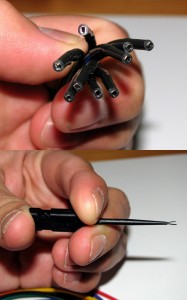

Cabels & Hooks
Wires & Hooks

The Logic comes in a nice Logic Case, usually intended for some other electronics such as external hard drives I suppose, that can accommodate itself  and its USB cable, its set of wires and the E-Z-hook clips.

What I enjoy the most is that the wires are robust and kink-proof, and they are terminated in female headers, which makes them very easy to use in breadboards and on male pins in general. Also, the hooks are removable and they can connect to harder-to-access pins in a secure way. The wire colour coding follows the resistor colour coding (i.e. Channel 0 is black, channel 1 is brown, etc) and this might be a bit confusing at the beginning since the Ground wire is grey instead of being the usual black.

Finally, the carrying case is a very nice feature since it allows you to have the Logic and all the related items in one single place. The case is a bit too big, but I the extra space could be used to store some extra accessories, such as headers gender-changers (for plugging into female headers) or wire extensions with special ports (e.g. DB-9, RJ-45). I also enjoy the fact that all the components come in their own little zipper-bag that allows you to store the unit in a nice pristine condition (it may not seem like it, but I like to preserve things in their original state, unless they come from the garbage in which case I mod them and unscrupulously use their pieces).


I did not want to take the Logic apart in order to see its guts (so far) so I do not have too many details about the hardware other than what is listed in Saleae’s website: (1)the inputs are protected to you don’t fry anything, (2) it can sample at 24 MHz,  and (3) it is able to store up to 500 M samples.


The software can be downloaded for free (and used in demo mode) looks really nice but unfortunately, the current stable version works only under the Redmond OS and it does not play very well with Wine in Linux or in my XP virtual machine. I would have really liked to test its Protocol Analyzers, a function that automatically sets the names of the signals and decodes the information accordingly to the protocol being analyzed (e.g. I2C, RS232, SPI, 1-Wire).

Anyways, there is an upcoming cross-platform version of the software that looks very promising and is currently under private beta at the moment. Of course, I could not resist the urge to join the beta testing and I can say that the new software is working very nicely (so far, I have not tested it extensively yet) under my 64-bit Kubuntu setup.

Needless to say, as soon as the software goes public, I will post a more thorough review, so keep posted.


The Logic is a very nice piece of equipment for any hobbyist or professional (provided you do not require to read signals faster than 24 MHz, which is rare specially while debugging). It is built to last fits very nicely in a hacker’s toolbox (or even pocket). I would recommend the Logic to anyone needing a sturdy and easy-to-use Logic analyzer, and I will be using it in my upcoming projects.

New Laptop

Lately the site has been experiencing some server errors (aka 500 errors). although my host seems to think it is because I use too much memory and I should buy a better hosting plan, more about
I am sure it is caused by spam.

My post on the Xbox Media Center has been getting thousands of hits of  “people” trying to posts comments. In order to stop this, I disabled the comment feature in this article and I changed its address. Eversince, the site has been doing fine without any errors.

And now, for something completely different:

[youtube M_eYSuPKP3Y]

Following some serious problems with my Eee PC, viagra order I acquired a new laptop, a real one. I was planning to use the Eee as may main and only computer but some very serious problems with its SDD (that I will describe in another post soon) prevented me form doing so.

I opted for a Dell Vostro 1320 and must say it is a beautiful machine. It is small, powerful, light, and most importantly shiny.

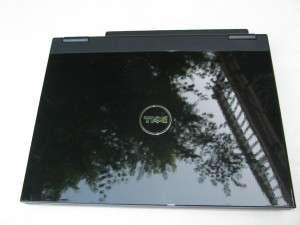

Vostro 1320
